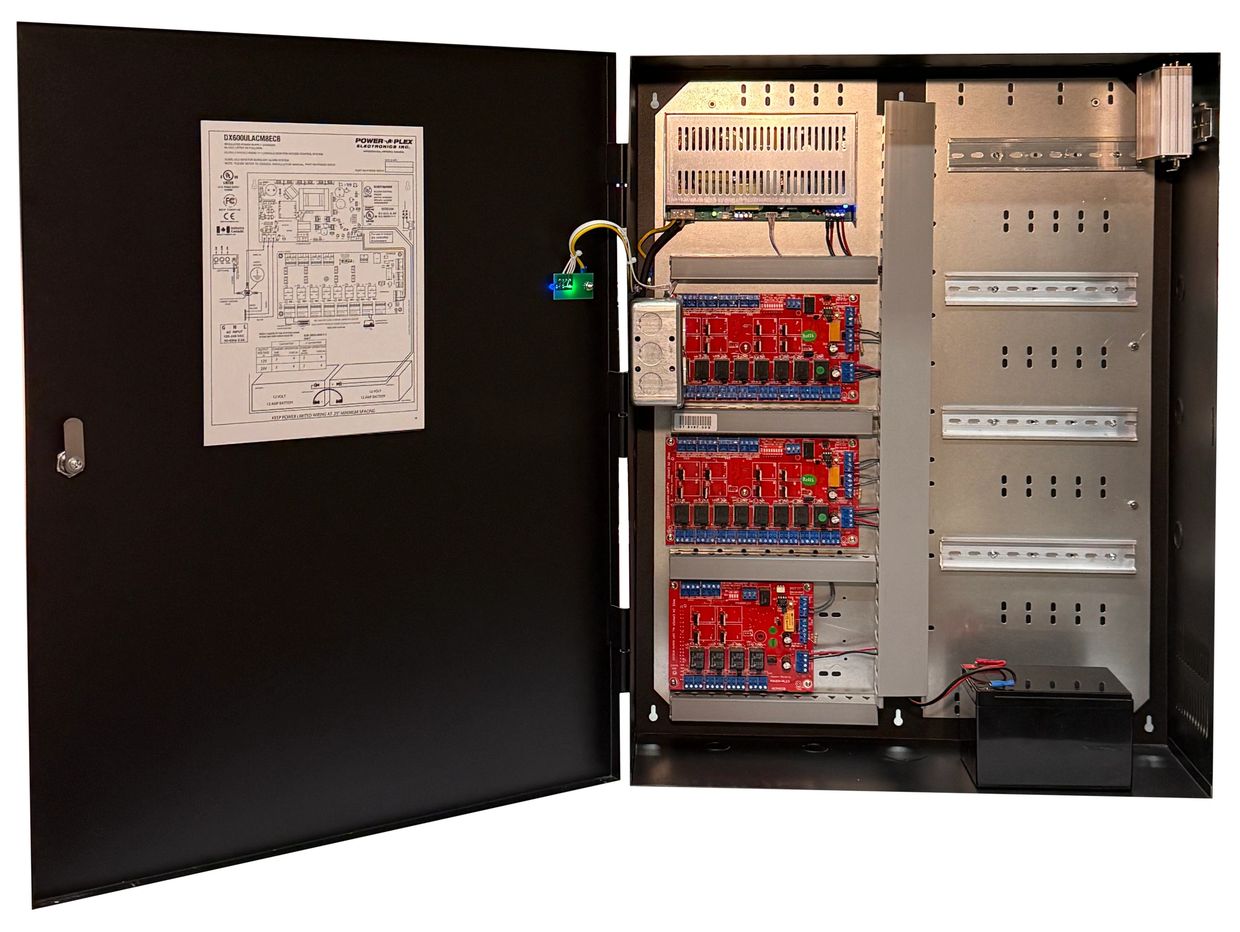

Rover 01
- Input: 120-240 VAC, 50/60Hz, 2.5 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 7Amp. Optional tamper switches. There are up to 20 inputs from access control system and 20 outputs each rated max.2.0Amp(max. total current 7 Amp), each with electronic overcurrent protection set at 2.5 Amp. Suitable for any ACCESS CONTROL SYSTEM.
- Battery Backup:Supports standby batteries (e.g., two 12AH or 17AH) during AC outages. Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / egress doors
- Listed under UL294, CAN/ULC-60839-11-1,CAN/ULC-S533.
