CHARGER for ACCESS CONTROL and EGRESS DOORS

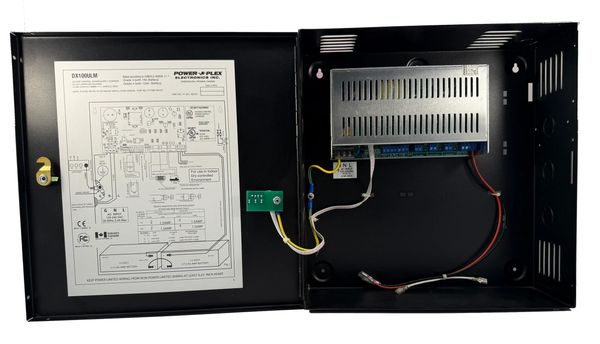

DX100ULM
- Input: 120-240 VAC, 50/60Hz, 2.4 Amp maximum
- Output: Switch-selectable 12VDC or 24VDC at 1.5Amp, 2 magnetic locks or 2 strikes outputs each, with electronic over-current protection set at 1 Amp. Optional tamper switches.
- Battery Backup: Supports standby batteries (e.g., two 7AH) during AC outages.
- Applications: Power for magnetic locks, electric strikes, power bolts, and motorized latch retraction in security systems with fire disconnect.
Listed under the UL294, CAN/ULC-60839-11-1 and CAN/ULC-S533

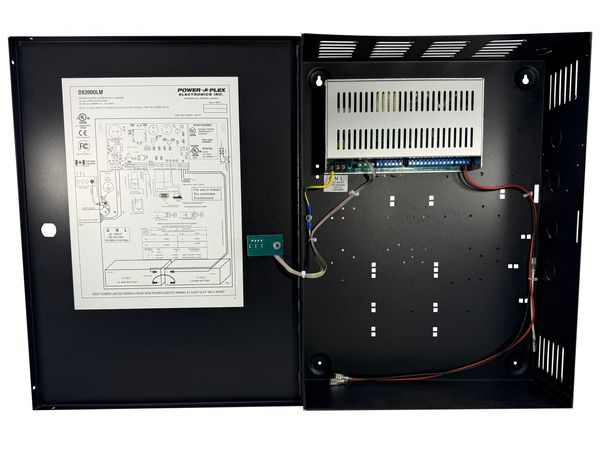

DX200ULM
- Input: 120-240 VAC, 50/60Hz, 2.4 Amp maximum
- Output: Switch-selectable 12VDC or 24VDC at 2.5Amp, 4 magnetic locks or 4 strikes outputs each, with electronic over-current protection set at 1 Amp. Optional tamper switches.
- Battery Backup: Supports standby batteries (e.g., two 7AH) during AC outages.
- Applications: Power for magnetic locks, electric strikes, power bolts, and motorized latch retraction in security systems with fire disconnect.
Listed under the UL294, CAN/ULC-60839-11-1 and CAN/ULC-S533
