AC POWER SUPPLIES

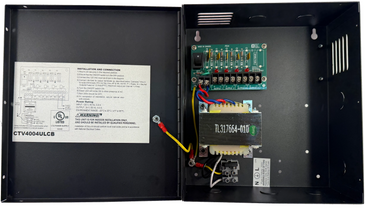

CTV4004ULCB

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. There are 4 outputs each rated max. 1.6Amp, each with PTC fuse.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

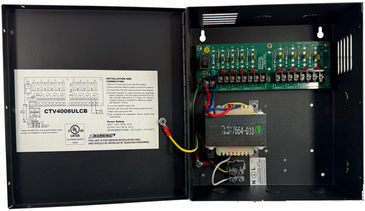

CTV4008ULCB

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. There are 8 outputs each rated max. 1.6Amp, each with PTC fuse.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

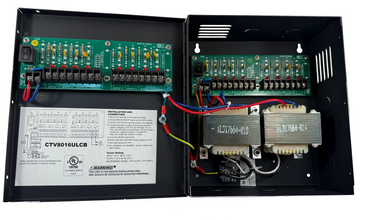

CTV8016ULCB

Input: 120VAC, 60Hz, 1.8 Amp maximum.
Output: 24VAC at 8Amp. There are 16 outputs each rated max. 1.6Amp, each with PTC fuse.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

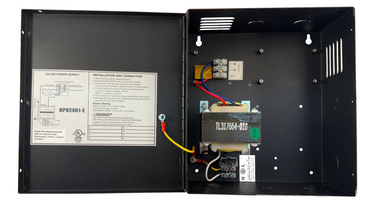

HPV2401-E

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. Single output with 4Amp PTC fuse.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

HPTV2404-E

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. 4 individual output fused at 3Amp automotive style.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

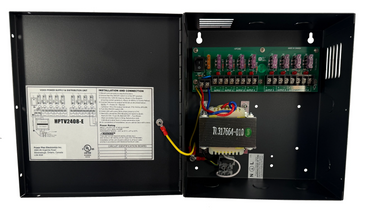

HPTV2408-E

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. 8 individual output fused at 3Amp automotive style.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

HPTV2416-E

Input: 120VAC, 60Hz, 1.8 Amp maximum.
Output: 24VAC at 8Amp. 16 individual output fused at 3Amp automotive style.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

HPTV2404UL

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. 4 individual output fused at 1Amp with glass fuses.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

HPTV2408UL

Input: 120VAC, 60Hz, 0.9 Amp maximum.
Output: 24VAC at 4Amp. 8 individual output fused at 1Amp with glass fuses.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00

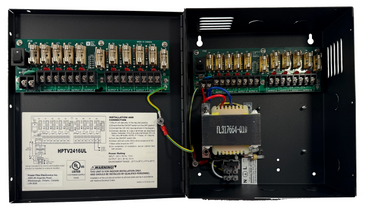

HPTV2416UL

HPTV2416UL

Input: 120VAC, 60Hz, 1.8 Amp maximum.
Output: 24VAC at 8Amp. 16 individual output fused at 1Amp with glass fuses.
Applications: for CCTV systems
Listed under UL60950/CSA 22.2 No60950-00
