12Volt DC POWER SUPPLY

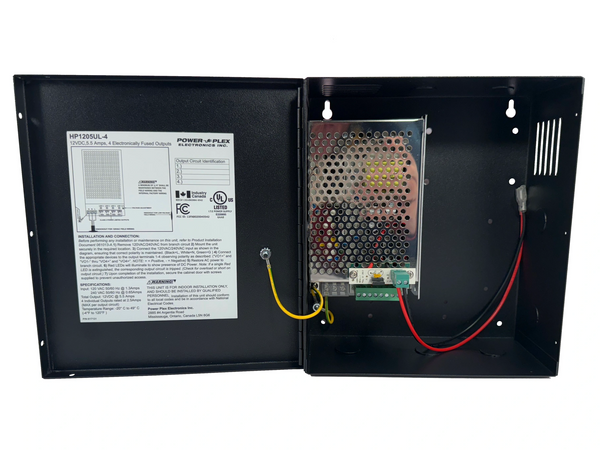

HP1205UL-4
- Input: 120-240 VAC, 50/60Hz, 1.3 Amp maximum.
- Output: 12VDC at 5.5Amp. There are 4 outputs each rated max. 2.5Amp(max. total current 5.5 Amp).
- Battery Backup: Supports standby battery (e.g., one 4AH) during AC outages.
- Maximum battery charging current 500mA
- Applications: for access control / security / CCTV systems
- Listed under UL listed to UL-60950 Information Technology Equipment. CE/LVD EN60950-1, CE/EMC:EN55022, EN55024, FCC PART 15, ICES 003-2012

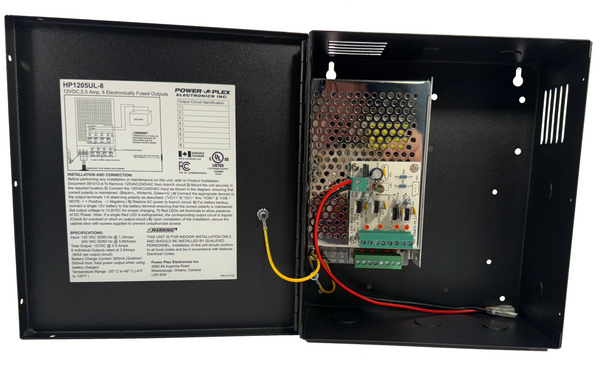

HP1205-8
- Input: 120-240 VAC, 50/60Hz, 1.3 Amp maximum.
- Output: 12VDC at 5.5Amp. There are 8 outputs each rated max. 2.5Amp(max. total current 5.5 Amp).
- Battery Backup: Supports standby battery (e.g., one 4AH) during AC outages.
- Maximum battery charging current 500mA
- Applications: for access control / security / CCTV systems
- Listed under UL listed to UL-60950 Information Technology Equipment. CE/LVD EN60950-1, CE/EMC:EN55022,EN55024, FCC PART 15, ICES 003-2012

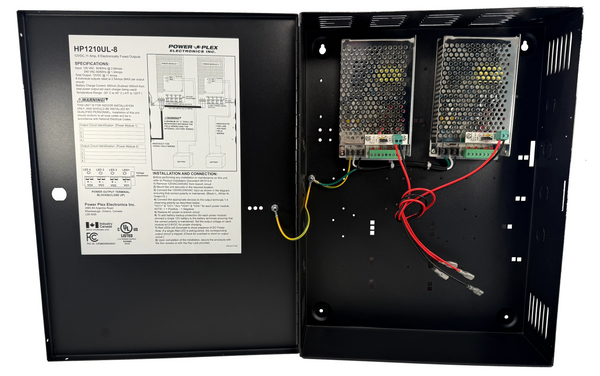

HP1210UL-8
- Input: 120-240 VAC, 50/60Hz, 2.6 Amp maximum.
- Output: 12VDC at 11Amp. There are 8 outputs each rated max. 2.5Amp(max. total current 11Amp).
- Battery Backup: Supports standby batteries (e.g., two 7AH) during AC outages.
- Maximum battery charging current 500mA
- Applications: for access control / security / CCTV systems
- Listed under UL listed to UL-60950 Information Technology Equipment. CE/LVD EN60950-1, CE/EMC:EN55022,EN55024, FCC PART 15, ICES 003-2012

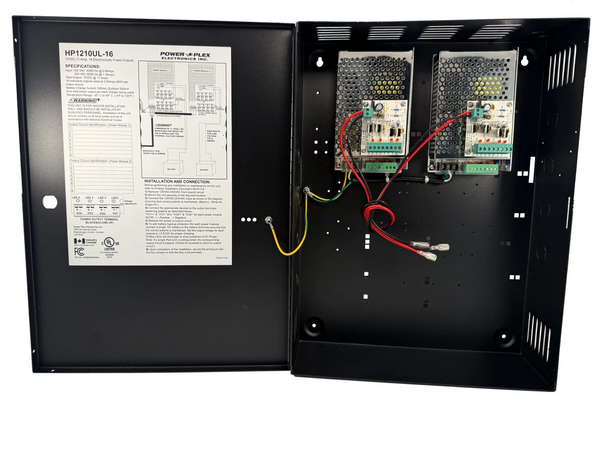

HP1210UL-16
- Input: 120-240 VAC, 50/60Hz, 2.6 Amp maximum.
- Output: 12VDC at 11Amp. There are 16 outputs each rated max. 2.5Amp(max. total current 11Amp).
- Battery Backup: Supports standby batteries (e.g., two 7AH) during AC outages.
- Maximum battery charging current 500mA
- Applications: for access control / security / CCTV systems
- Listed under UL listed to UL-60950 Information Technology Equipment. CE/LVD EN60950-1, CE/EMC:EN55022,EN55024, FCC PART 15, ICES 003-2012
