DX300 SERIES MONITORED POWER SUPPLIES
DX300UL
- Input: 120-240 VAC, 50/60Hz, 1.4 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 3Amp. Optional tamper switches.
- Battery Backup: Supports standby batteries (e.g., two 12AH) during AC outages.
- Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / fire systems/ egress doors/ burglary alarm systems
- Listed under CAN/ULC-S527, UL864, ULC-S318,UL603,UL294, CAN/ULC-60839-11-1,CAN/ULC-S533

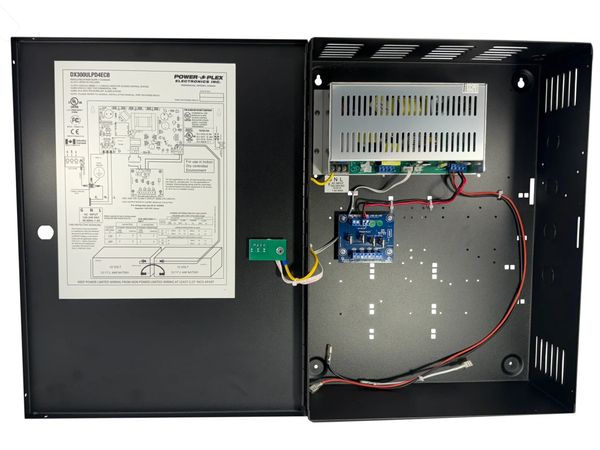

DX300ULPD4ECB
- Input: 120-240 VAC, 50/60Hz, 1.4 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 3Amp. Optional tamper switches. 4 outputs each rated max. 2.0Amp(max. total current 3 Amp), each with electronic overcurrent protection set at 2.5 Amp.
- Battery Backup: Supports standby batteries (e.g., two 12AH) during AC outages.
- Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / fire systems/ egress doors/ burglary alarm systems
- Listed under CAN/ULC-S527, UL864, ULC-S318, UL603,UL294, CAN/ULC-60839-11-1, CAN/ULC-S533

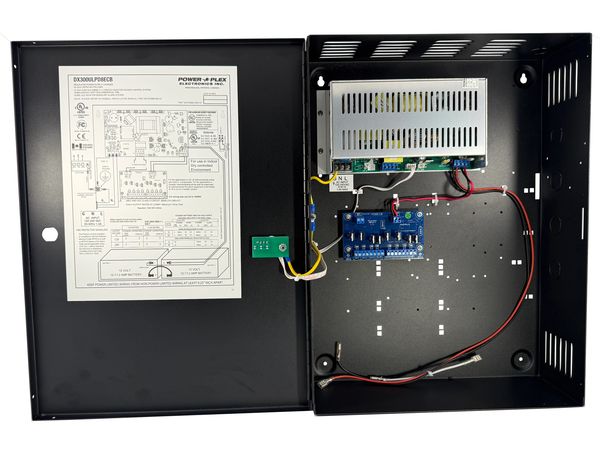

DX300ULPD8ECB
- Input: 120-240 VAC, 50/60Hz, 1.4 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 3Amp. Optional tamper switches. 8 outputs each rated max. 2.0Amp(max. total current 3 Amp), each with electronic overcurrent protection set at 2.5 Amp.
- Battery Backup: Supports standby batteries (e.g., two 12AH) during AC outages.
- Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / fire systems/ egress doors/ burglary alarm systems
- Listed under CAN/ULC-S527,UL864,ULC-S318,UL603,UL294, CAN/ULC-60839-11-1,CAN/ULC-S533

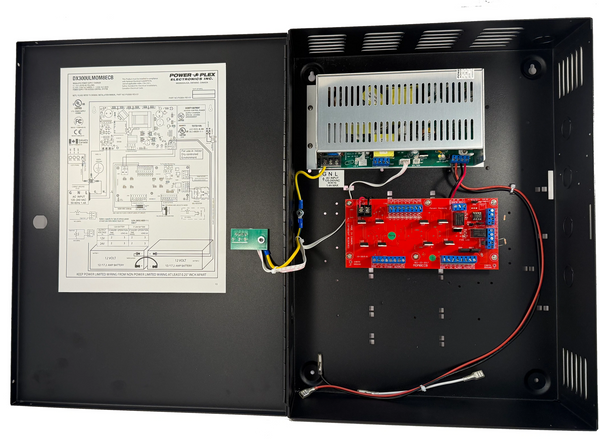

DX300ULMOM8ECB
- Input: 120-240 VAC, 50/60Hz, 1.4 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 3Amp. Optional tamper switches. 8 outputs each rated max. 2.0Amp(max. total current 3 Amp), each with electronic overcurrent protection set at 2.5 Amp. The 8 outputs will switch ON or OFF security devices such as Magnetic Locks, Door Strikes, etc. It is to be connected to FACP or ACP via a NO or NC configurable contact input with EOLR 2.2kohm.
- Battery Backup: Supports standby batteries (e.g., two 12AH) during AC outages.
- Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / fire systems/ egress doors/ burglary alarm systems
- Listed under UL294, CAN/ULC-60839-11-1,CAN/ULC-S533

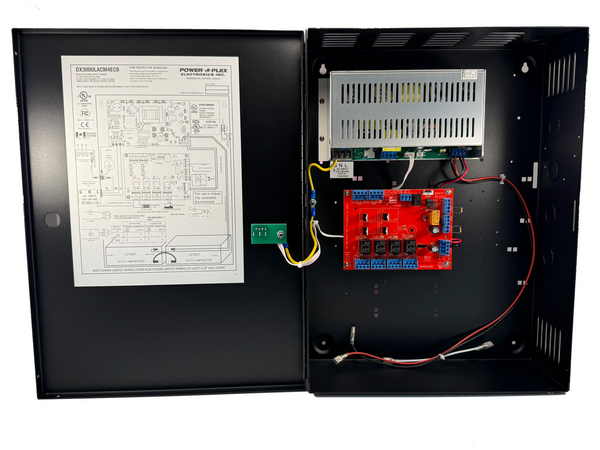

DX300ULACM4ECB
- Input: 120-240 VAC, 50/60Hz, 1.4 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 3Amp. Optional tamper switches. There are 4 inputs from access control system and 4 outputs each rated max. 2.0Amp(max. total current 3 Amp), each with electronic overcurrent protection set at 2.5 Amp.
- Battery Backup: Supports standby batteries (e.g., two 12AH) during AC outages.
- Maximum battery charging current 1.5Amps (not part of the max output current rating).
- Applications: for access control / fire systems/ egress doors/ burglary alarm systems
- Listed under UL294, CAN/ULC-60839-11-1,CAN/ULC-S533
