PWX SERIES POWER SUPPLIES

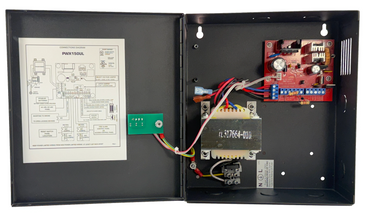

PWX150UL
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 1.7Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby battery (e.g., one 4.5AH) during AC o
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 1.7Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby battery (e.g., one 4.5AH) during AC outages. Maximum battery charging current 500mA.
- Applications: for access control / egress doors
- Enclosure dimension 8” x 9” x 3.5 (204mm x 231mm x 89mm)
- UL listed with UL294 Edition 7th. ULC-S533

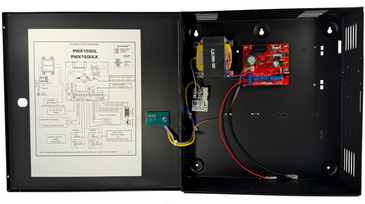

PWX150ULX
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 1.7Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby batteries (e.g., two 4.5AH or two 7AH
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 1.7Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby batteries (e.g., two 4.5AH or two 7AH) during AC outages.
- Maximum battery charging current 500mA
- Applications: for access control / egress doors
- Enclosure dimension 12” x 13” x 4 (323mm x 331mm x 110mm)
- UL listed with UL294 Edition 7th. ULC-S533

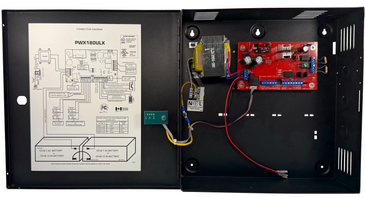

PWX180ULX
PWX180ULX
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 2.3Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby batteries (e.g., two 7AH or two 12AH)
- Input: 120-240 VAC, 60Hz, 1.8 Amp maximum.
- Output: Switch-selectable 12VDC or 24VDC at 2.3Amp. Optional tamper switches.
- 1 Input for Egress door, 1 output for Magnetic Lock, 1 output for Electric Strike. Each with over current protected by 2.5Amp P.T.C. . Fire disconnect.
- Battery Backup: Supports standby batteries (e.g., two 7AH or two 12AH) during AC outages. Maximum battery charging current 500mA.
- Applications: for access control / egress doors
- Enclosure dimension 12” x 13” x 4 (323mm x 331mm x 110mm)
- UL listed with UL294 Edition 7th. ULC-S533
