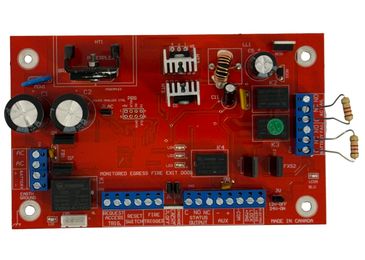

FX1
- 1 Input for Egress door
- 1 output for Magnetic Lock
- 1 output for Electric Strike
- each with over current protected by 2.5Amp PTC. Fire disconnect.

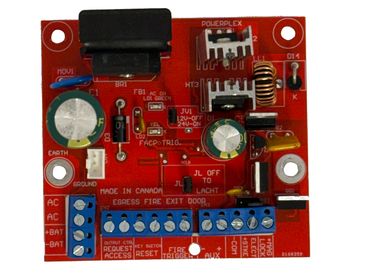

FX2 (AC and Battery Monitoring)
1 Input for Egress door
1 output for Magnetic Lock
1 output for Electric Strike
each with over current protected by 2.5Amp PTC. Fire disconnect.

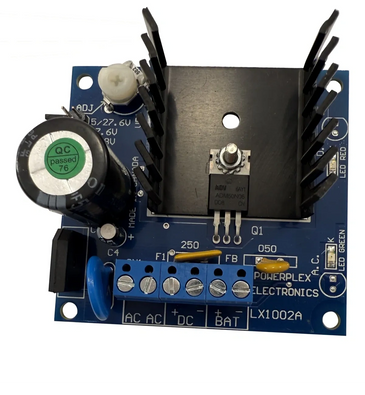

LX1002A
1Amp at 12/24VDC
300mA battery charge

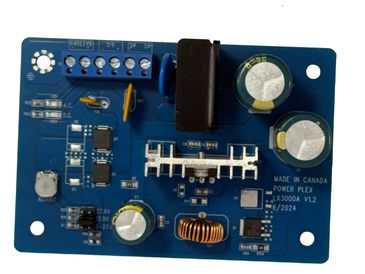

LX3000A
PD4ULPTC
2.5 Amp at 12/24VDC
500mA battery charge
PD4ULPTC
PD4ULPTC
PD4ULPTC
4-output board fused at 1.6 Amp with PTC fuse
PD8ULPTC
PD4ULPTC
PD4ULPTC
8-output board fused at 1.6 Amp with PTC fuse

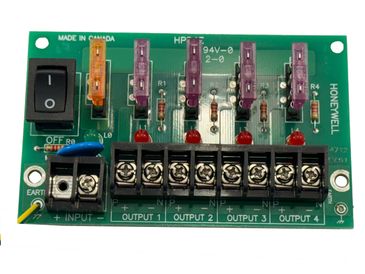

HPD4E
HPD4E
HPD4E
4-output board fused at 3 Amp with automotive fuse
HPD8E
HPD4E
HPD4E
8-output board fused at 3 Amp with automotive fuse
PD4
HPD4E
4-output board fused at 1Amp with glass fuse

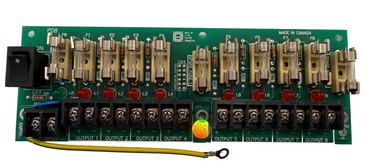

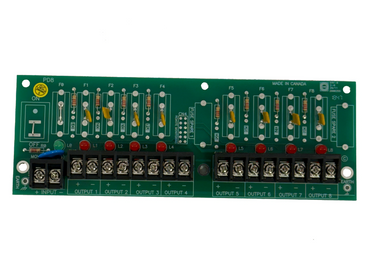

PD8
8-output board fused at 1Amp with glass fuse

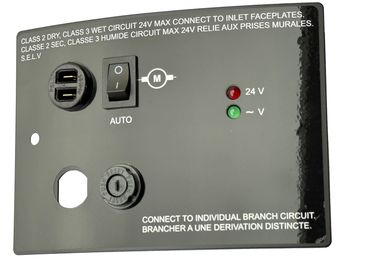

UMC18
EURIKA Central Vacuum relay board

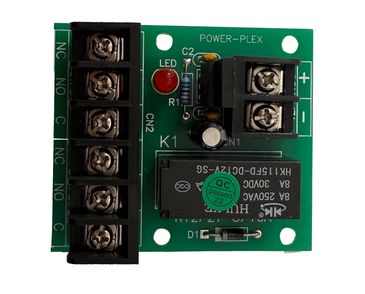

RY2P2T 8/16A
12/24VDC input
8/16Amp
